Well,
I popped down into the Big City this morning and called at R F Potts. A wonderful electronics outlet that seem to stock anything an everything. I came away with a pile of 2W carbon resistors of suitable values that I can parallel up and make my attenuator (again).

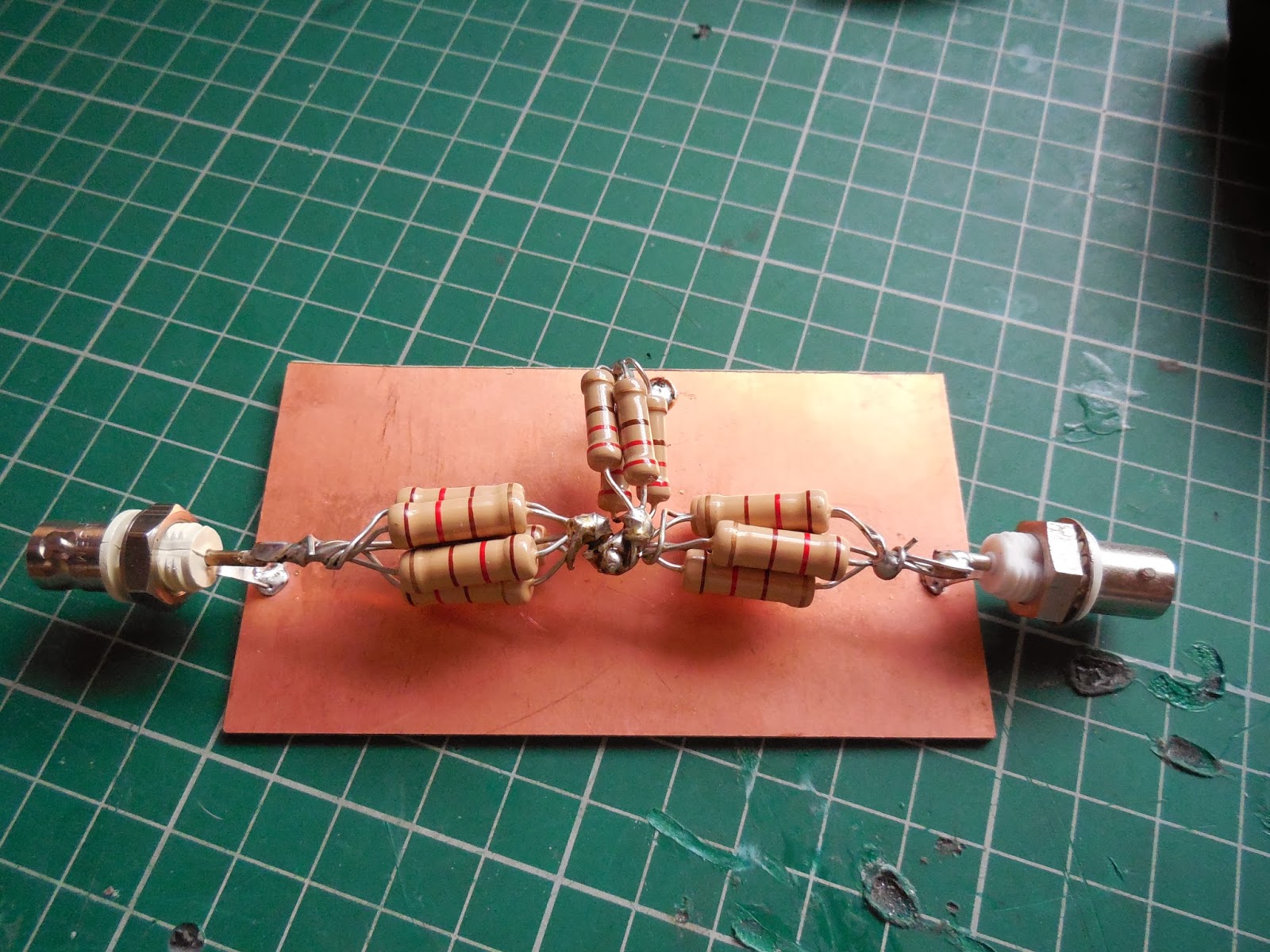

Here's the take II model:
And the attenuation I am seeing at 70MHz:
Which looks very much like 7.71dB - much closer to my target of 7dB than I managed last time!

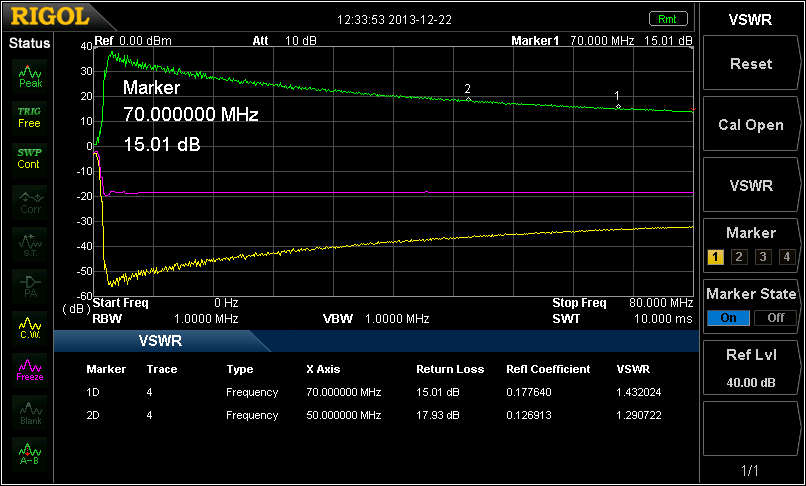

Also the return loss of the attenuator shows a good input and output impedance at 50R:
So, all in all, this is looking much better!
I need to progress the metal work for the amplifier now, then I can start to fit relays and other such gubbins and get the software progressing in my usual, write a bit, test a bit way.
Good, egh?
I popped down into the Big City this morning and called at R F Potts. A wonderful electronics outlet that seem to stock anything an everything. I came away with a pile of 2W carbon resistors of suitable values that I can parallel up and make my attenuator (again).
Here's the take II model:
And the attenuation I am seeing at 70MHz:
Which looks very much like 7.71dB - much closer to my target of 7dB than I managed last time!

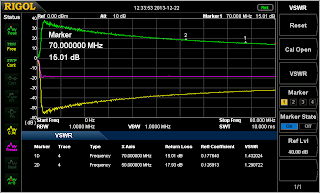

Also the return loss of the attenuator shows a good input and output impedance at 50R:
So, all in all, this is looking much better!
I need to progress the metal work for the amplifier now, then I can start to fit relays and other such gubbins and get the software progressing in my usual, write a bit, test a bit way.
Good, egh?
