Well,
The linear that I started way back here:
http://g0mgx.blogspot.co.uk/2013/11/now-that-smoke-has-settled.html
is almost complete, I've done my best to calibrate the input power detection circuity and will certainly "trip" into an alarm state if I overdrive the amplifier brick. I have also calibrated a simple directional coupler on the output to give me both forward and reflected power indication.
I needed to understand the match that my antenna gives me on 4M, but the Antenna Analyser that I bought some months ago only goes as far as 50MHz and the other MFJ unit that I share with Vince, G0ORC seems to have a gap in the tuning at exactly the 70MHz band.
So, I used the return loss bridge from here:
http://g0mgx.blogspot.co.uk/2013/09/return-loss-bridge-where-does-it-lead.html
and explained how to use it for SWR measurement back here:
http://g0mgx.blogspot.co.uk/2013/10/so-lets-get-bit-smarter.html
So, hooking the antenna from here:
http://g0mgx.blogspot.co.uk/2013/05/thatll-never-work-will-it.html
we see this:

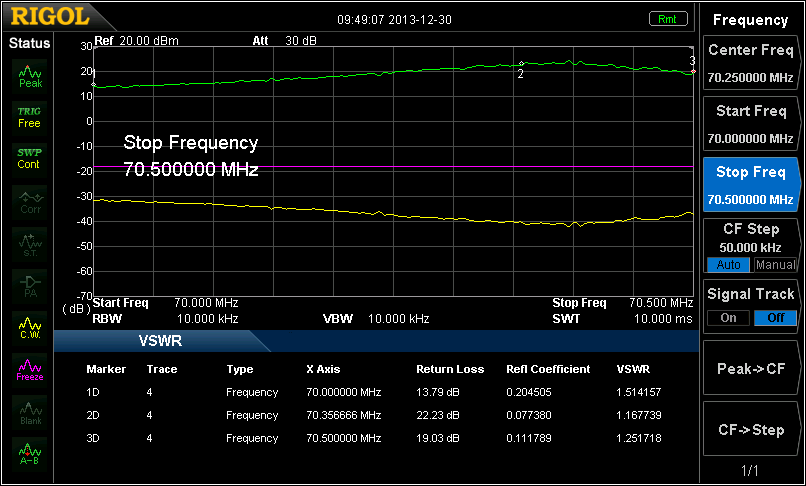

and focusing right on the 70MHz allocation only:
So, whilst it's not perfect, the antenna is a good match across the whole band. As the MS frequency it looks to be 1.3:1 - which is more than acceptable.
I need to introduce you to two new residents at G0MGX, they are Mother and Son, please meet Pepper and Freddie:
Fun, egh?
The linear that I started way back here:
http://g0mgx.blogspot.co.uk/2013/11/now-that-smoke-has-settled.html
is almost complete, I've done my best to calibrate the input power detection circuity and will certainly "trip" into an alarm state if I overdrive the amplifier brick. I have also calibrated a simple directional coupler on the output to give me both forward and reflected power indication.
I needed to understand the match that my antenna gives me on 4M, but the Antenna Analyser that I bought some months ago only goes as far as 50MHz and the other MFJ unit that I share with Vince, G0ORC seems to have a gap in the tuning at exactly the 70MHz band.
So, I used the return loss bridge from here:
http://g0mgx.blogspot.co.uk/2013/09/return-loss-bridge-where-does-it-lead.html
and explained how to use it for SWR measurement back here:
http://g0mgx.blogspot.co.uk/2013/10/so-lets-get-bit-smarter.html
So, hooking the antenna from here:
http://g0mgx.blogspot.co.uk/2013/05/thatll-never-work-will-it.html
we see this:

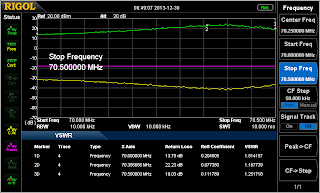

and focusing right on the 70MHz allocation only:
